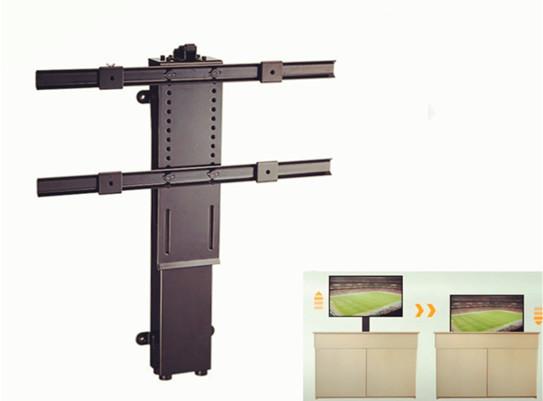

DC Motor Lifting columns Telescopic 24V for Projects TV Lifts
These electric lifting columns are primarily intended as TV lifts but are versatile enough for any application requiring vertical motion controlled by a remote. Built with sturdy steel, our 3-stage pillar comes in three sizes (S, M, L refer to the size below) to suit various needs and application requirements.
Specifcations:
| Product | Motorized TV Lift |
| Voltage | 24VDC |
| Max. load | 600N(push) |
| Max. speed | 22mm/s (at max. load) ; 32mm/s (at no load) |
| Retracted length | 570mm (S) ; 685mm(M); 795mm(L) |
| Signal output | Hall sensor |
| Telescopic pillar | 3-stage |
| Certification | CE, RoHS |
| Application | Furniture, projects screen lifts |
Features:
- 3 retracted length for your option
- 60kg max loading capacity
- 3-stage frame
- A good solution to your hidden TV lift cabinets
Standard dimensions (mm) & Retracted Length (mm)
L = Stroke 914, retracted length 795mm
M = Stroke 780, retracted length 685mm
S = Stroke 650, retracted length 570mm
It works with LINSHENG ACTUATOR CONTROLLER LS-RSK-H1s
Remote control ; 4 positions programmable
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
